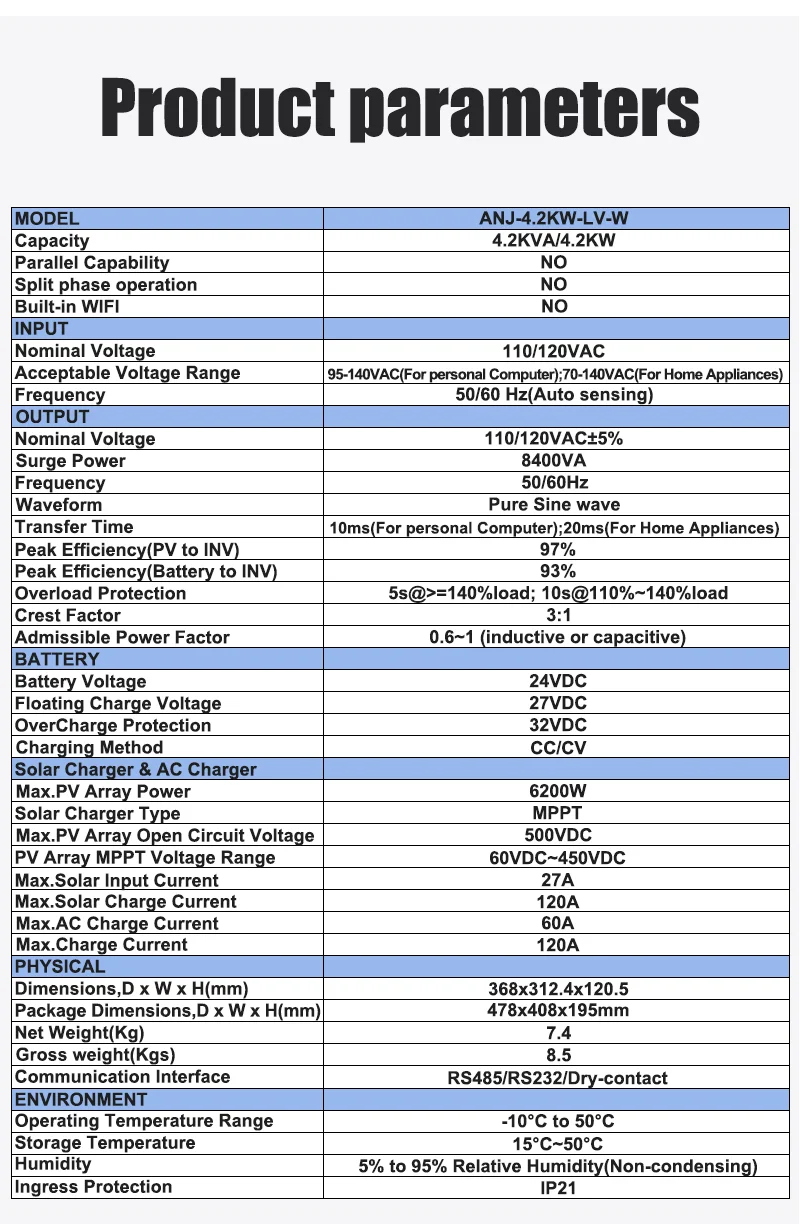

SPECIFICATIONS

Battery Voltage: 24VDC,24VDC

Brand Name: ANENJI

Certification: CE

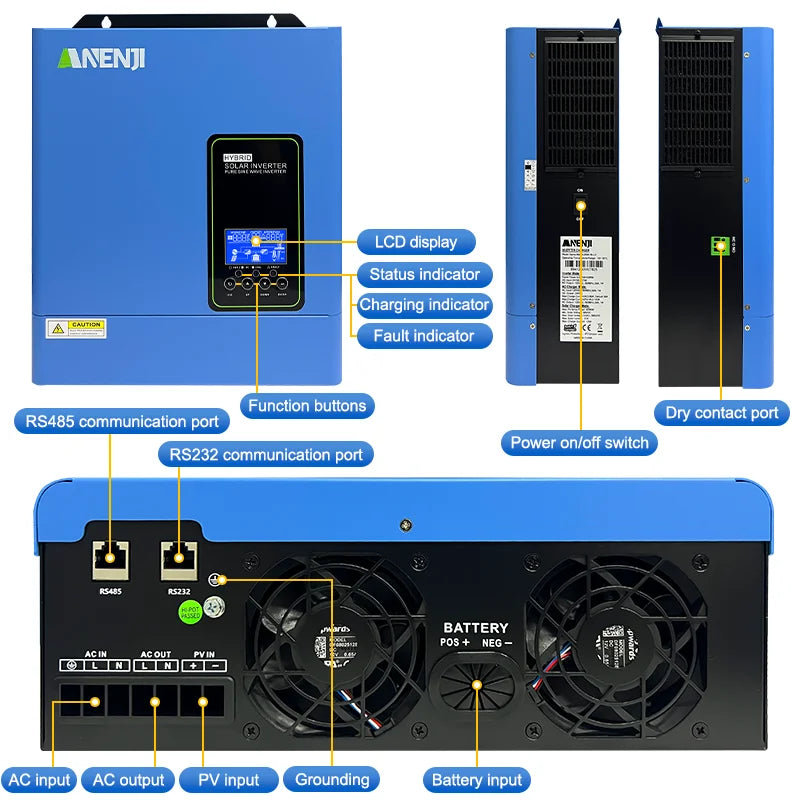

Communication Interface: RS485/RS232/Dry-contact

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Floating Charge Voltage: 27VDC

High-concerned chemical: none

Input Voltage: 110/120VAC

Is Smart Device: Yes

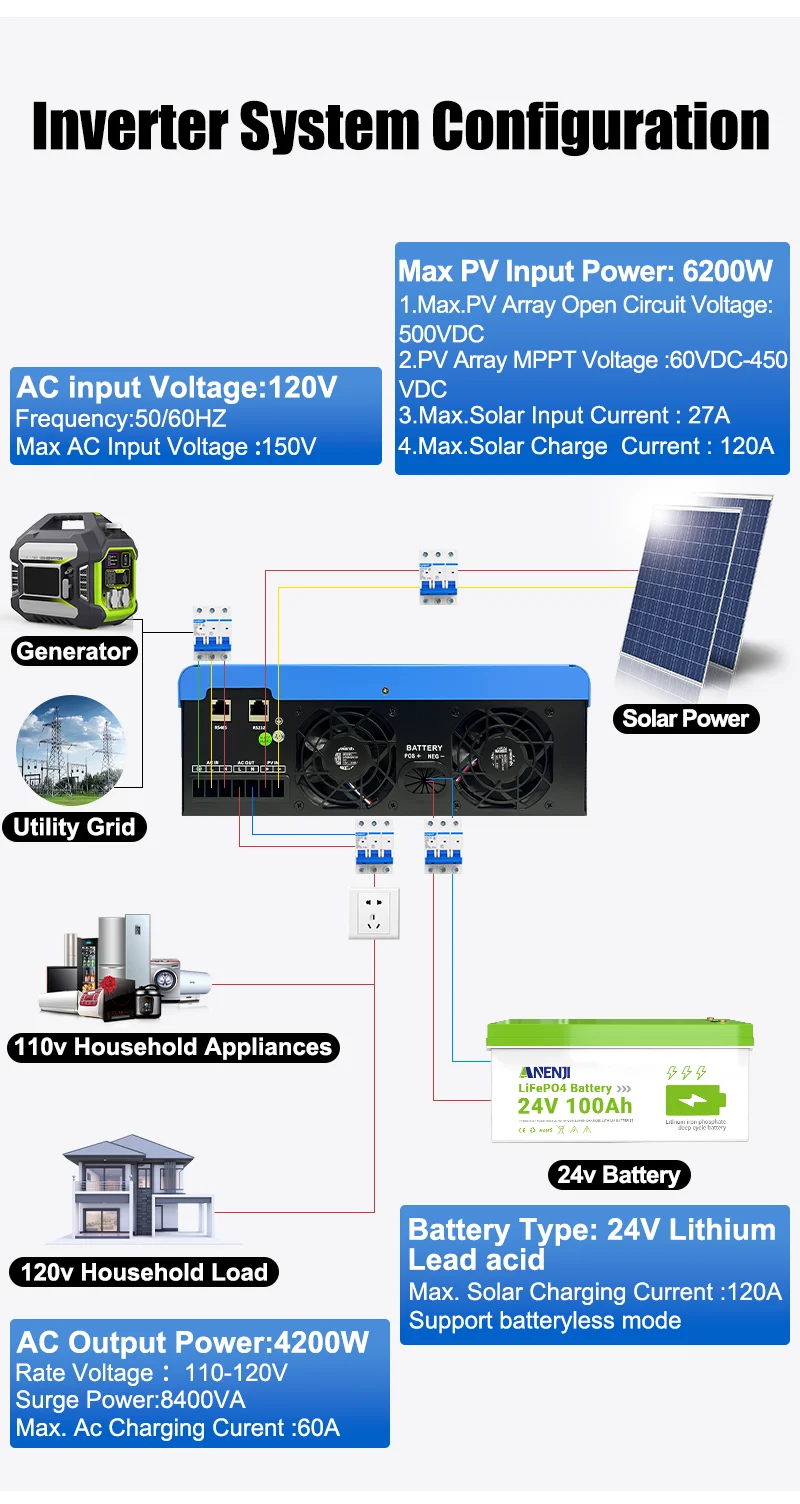

MPPT Range operation Voltage: 60-500VDC

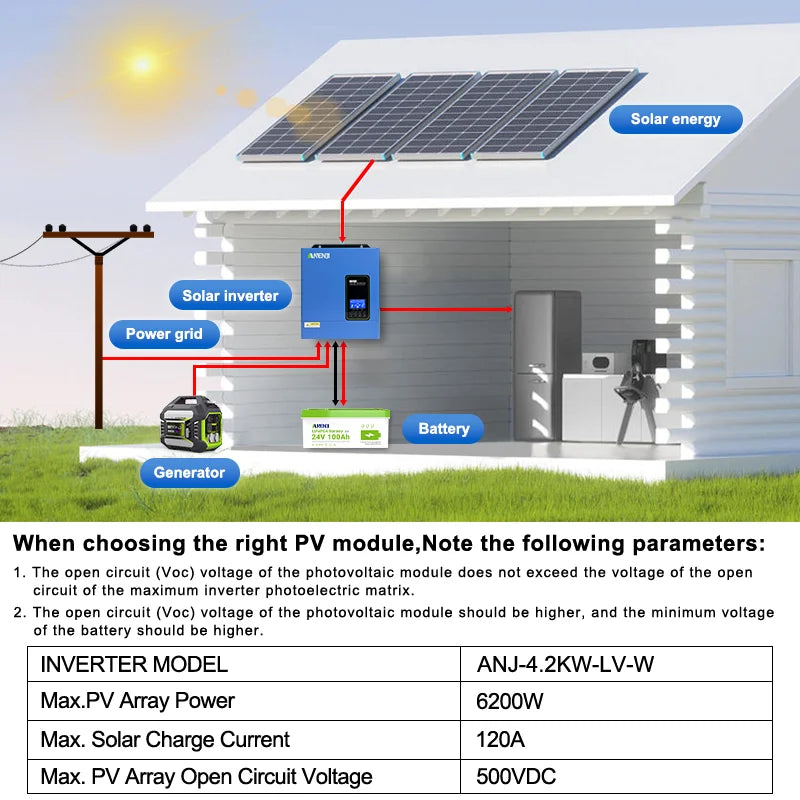

Maximum PV Array Open Circuit Voltage: 500VDC

Maximum PV Array Power: 6200W

Maximum Solar Charge Current: 120A

Maximum charge current: 120A

Model Number: ANJ-4.2KW-LV-W

Origin: Mainland China

Output Current: 120A

Output Frequency: 50/60HZ

Output Type: SINGLE

Overcharge Protection: 32VDC

Rated Power: 4200W

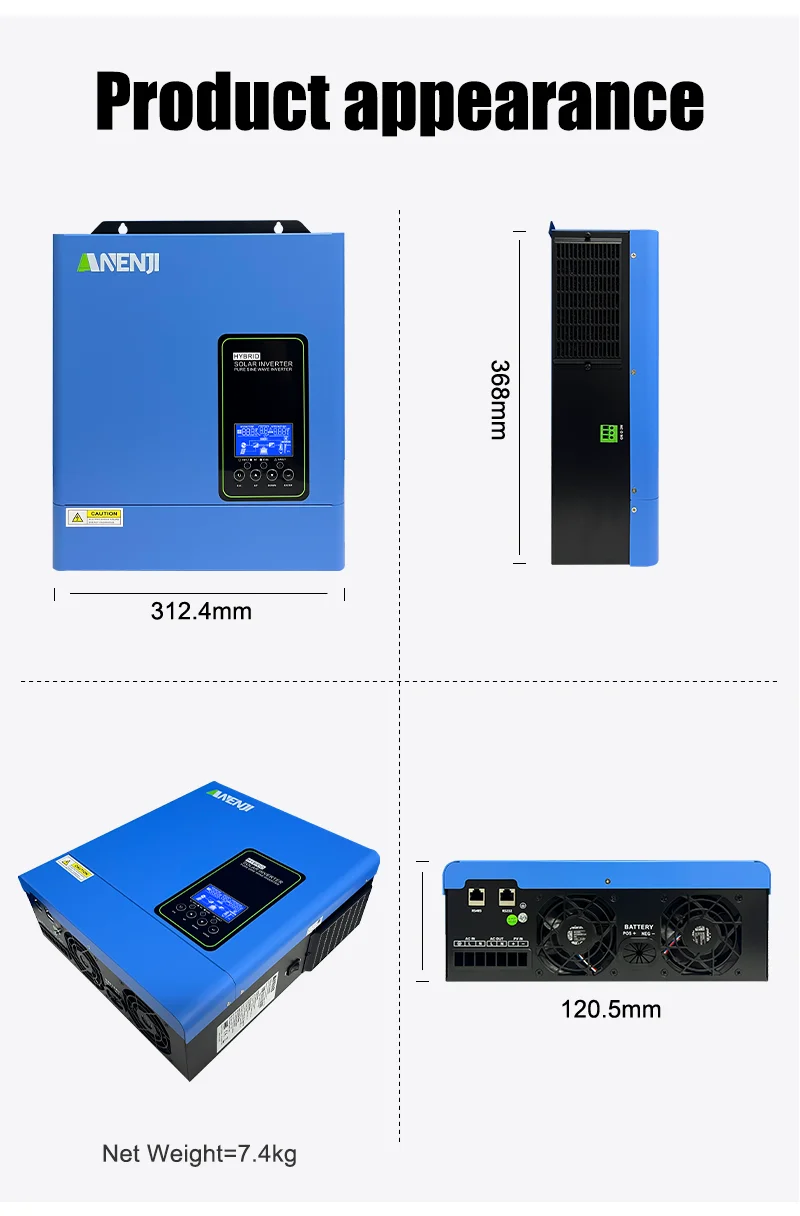

Size: 31x12x37CM

Surge Power: 8400VA

Wave Form: Pure sine wave

Weight: 7.5KG

is_customized: Yes

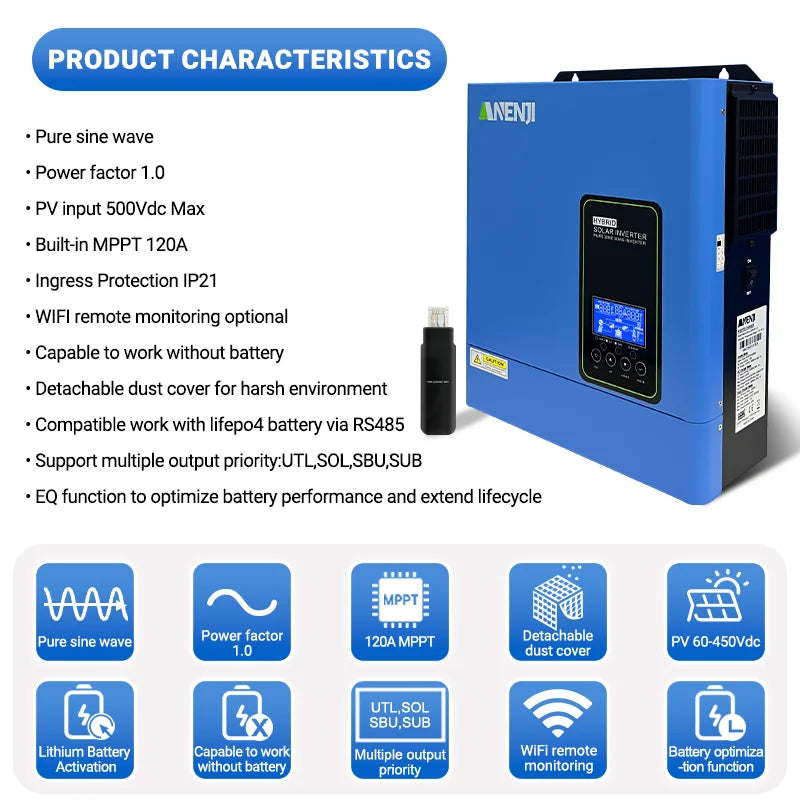

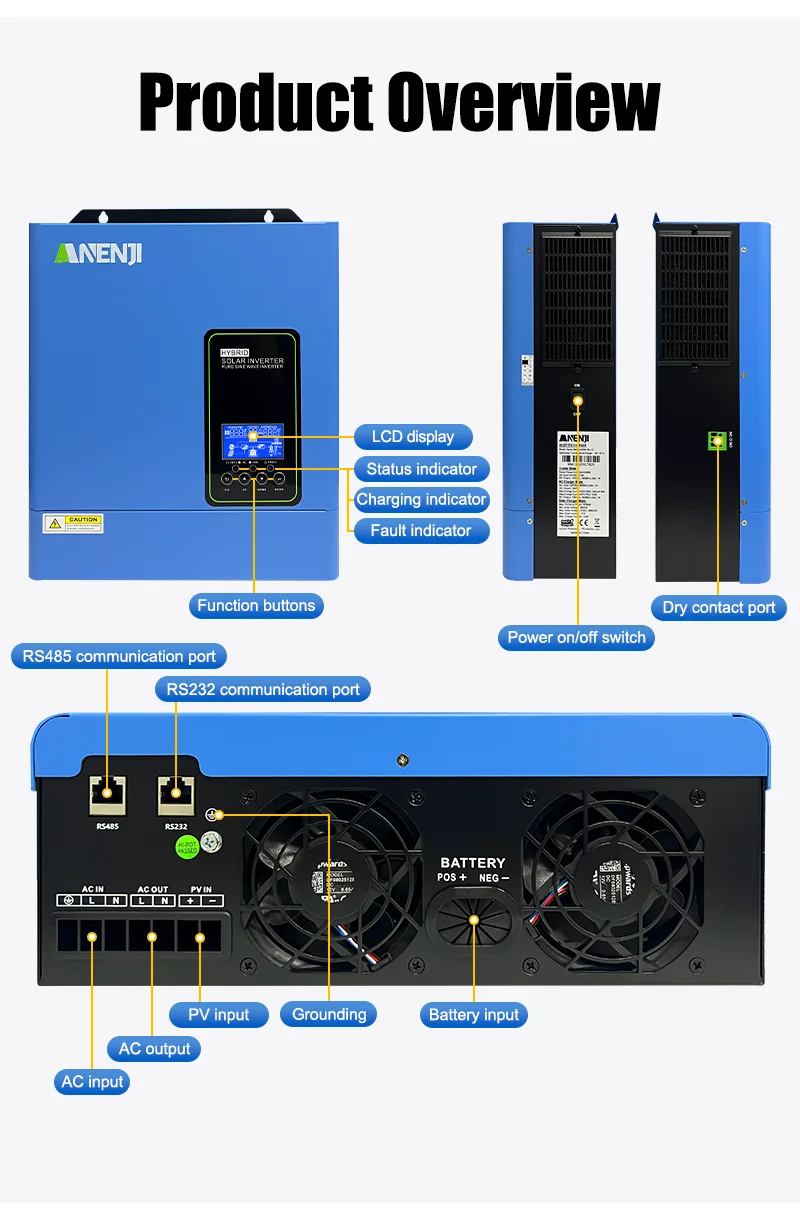

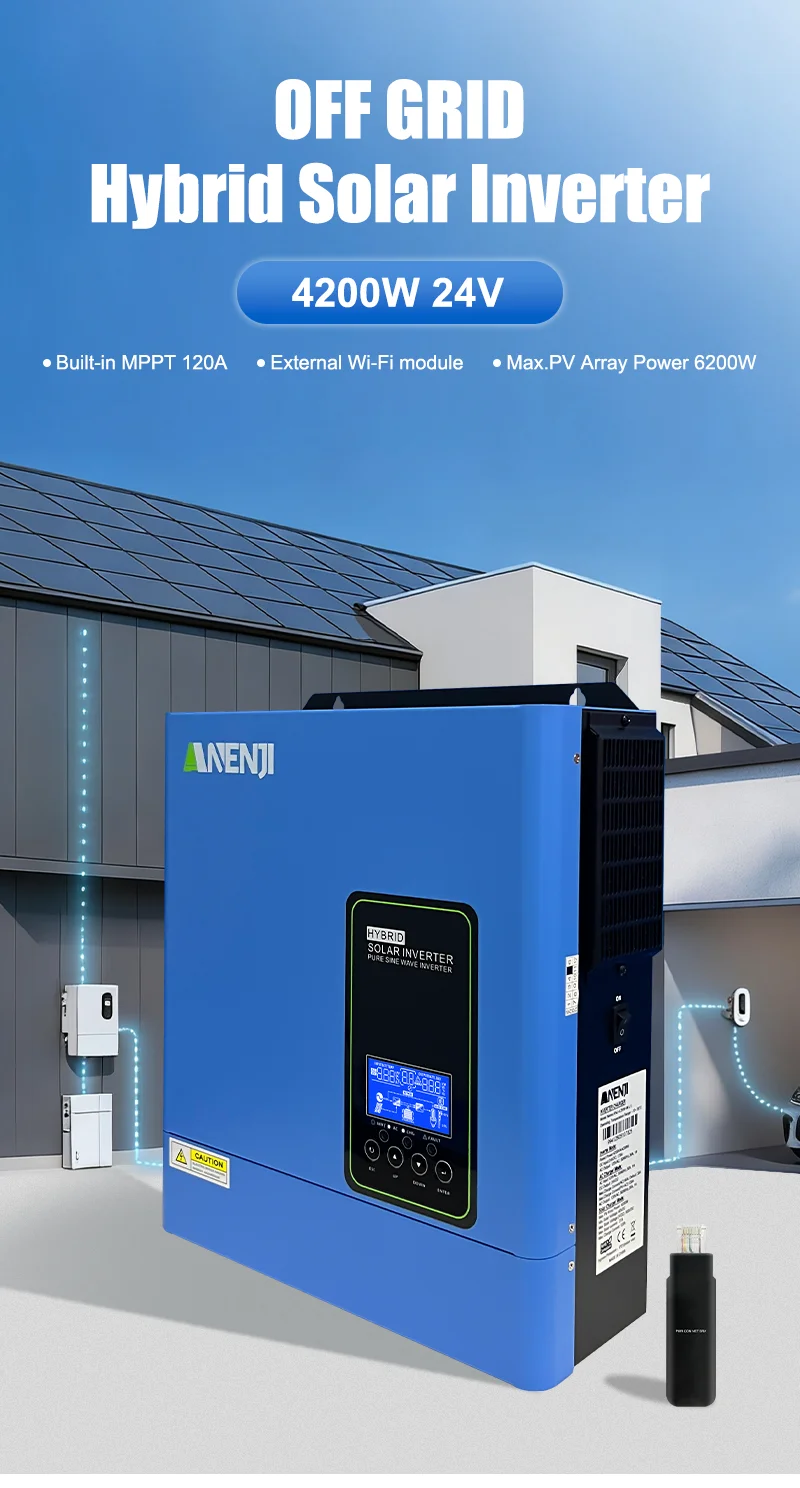

ANJ-4.2KW-LV-W Key Features:

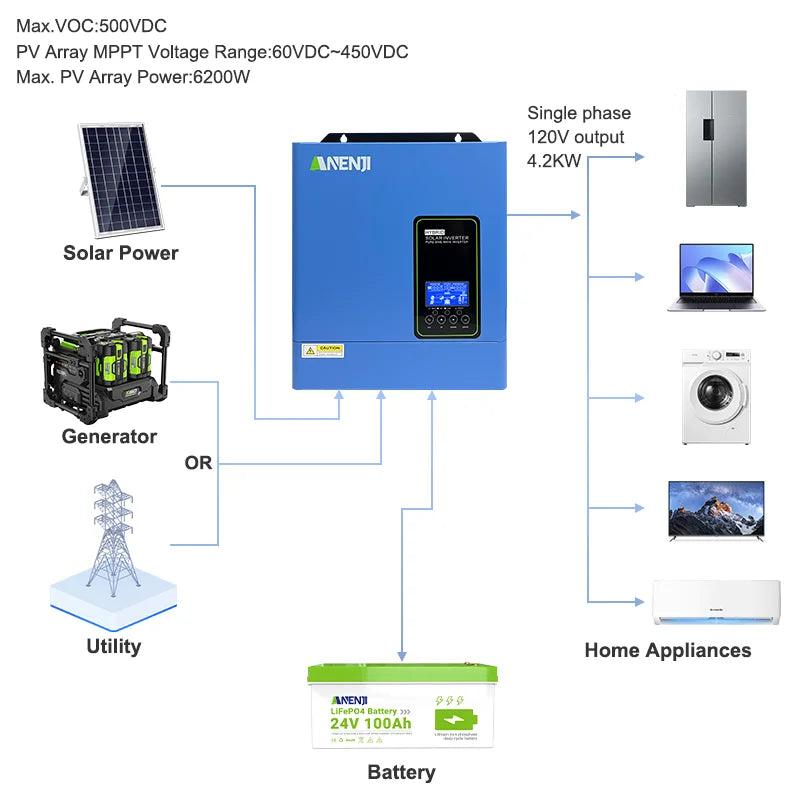

Off grid solar inverter

(1) Pure Sine Wave

(2) External Wi-Fi module

(3) PV Input Voltage 60-450VDC

(4) Built-in MPPT 120A

(5) Capable To Work Without Battery

(6) Detachable Dust Cover For Harsh Environment

(7) WiFi Remote Monitoring Optional

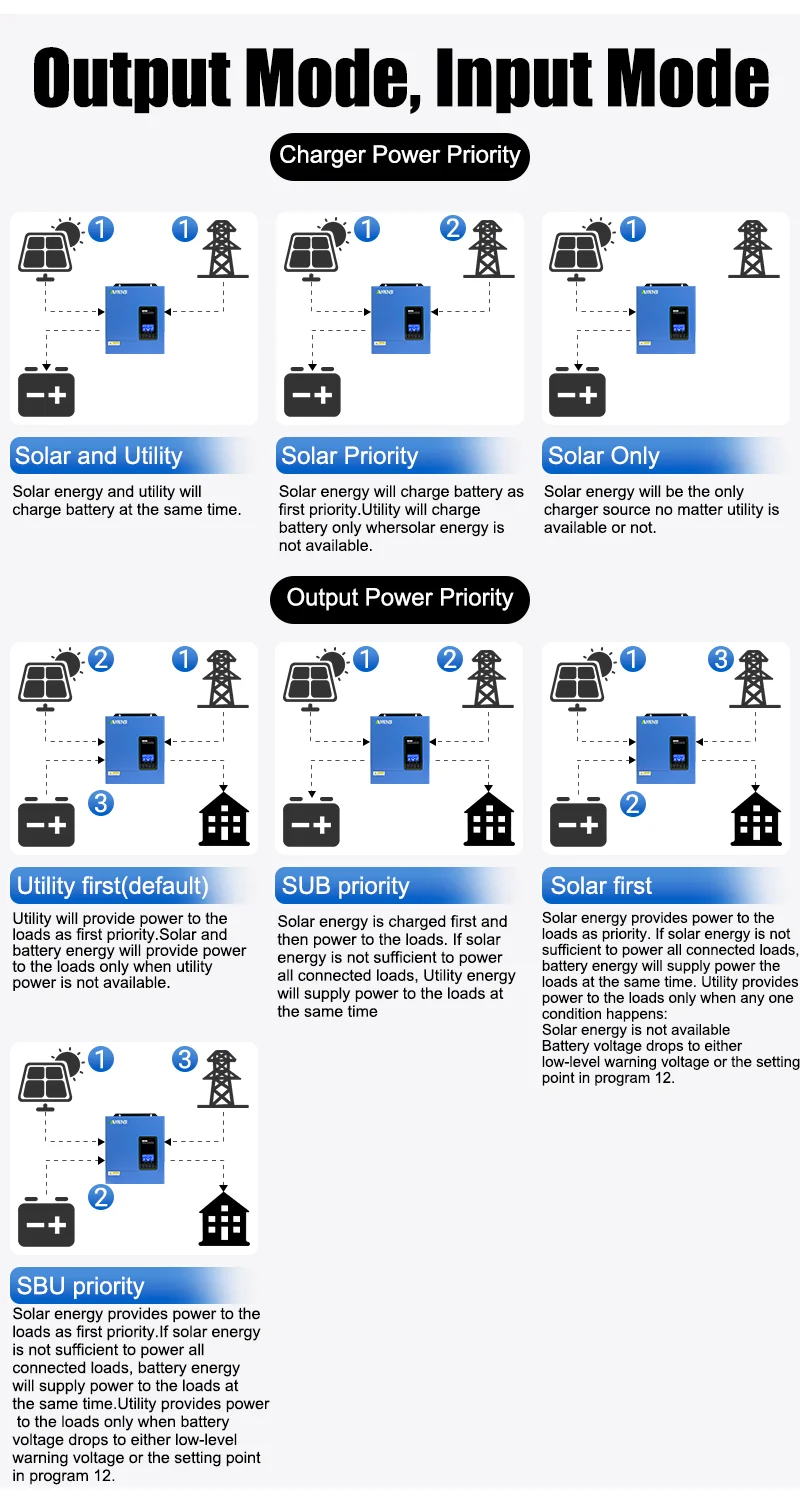

(8) Support Multiple Output Priority: UTL, SOL,SBU, SUB

(9) EQ Function To Optimize Battery Performance And Extend Life Cycle

(10) Compatible Work With Lifepo4 Battery Via RS485

(11) Lithium Battery Activation Function,Which Can Be Triggered By Mains Or PV

(12) Feed Into Grid

(13) Support PACE PYLON Growwatt Communication Protocols BMS

(14)Over-load, over temperature and output short circuit protection

Package:

1X Solar inverter

1XInstructions

1XWifi module
